Video
How to use video with Lytix
🚨 Note Currently this is only supported for the Gemini integration.
Lytix supports saving and re-playing video sessions. Further, you can self host the video storage to ensure your data is private.
Setting Up Video Storage
Lytix supports using Azure Blob Storage for video storage. To get started
Prerequisites
1. Creating a Storage Account
First we need to create a storage account (AKA bucket). To do that we’ll need to create a resource group along with a storage account.
az group create --name lytix-storage-resource-group --location westus
{
"id": "/subscriptions/...",
"location": "westus",
"managedBy": null,
"name": "lytix-storage-resource-group",
"properties": {
"provisioningState": "Succeeded"
},
"tags": null,
"type": "Microsoft.Resources/resourceGroups"
}
Next you can create a storage account. Rememeber storage accounts are globally unique, so you’ll need to change lytixvideos
to something unique like $COMPANY_NAME-videos
az storage account create --name lytixvideos --resource-group lytix-storage-resource-group
{
"accessTier": "Hot",
"accountMigrationInProgress": null,
...
Then create a container within the storage account. Remember to change lytixvideos
to the name of your storage account you used in the step above
> az storage container create --name lytix-videos-gemini --account-name lytixvideos
{
"created": true
}
Note The important values to remember here are the Store Account Name (e.g. lytixvideos
above) and the Container Name (e.g. lytix-videos-gemini
above).
2. Create a Service Principal
Next we need to create a service principal so that Lytix can access the storage account (AKA IAM role).
> az ad sp create-for-rbac --name lytix-service-principle
The output includes credentials that you must protect. Be sure that you do not include these credentials in your code or check the credentials into your source control. For more information, see https://aka.ms/azadsp-cli
{
"appId": "123",
"displayName": "lytix-service-principle",
"password": "123",
"tenant": "123"
}
âť— Make sure to note down these values, these are the credentials Lytix will use to access the storage account.
3. Upload Credentials to Lytix

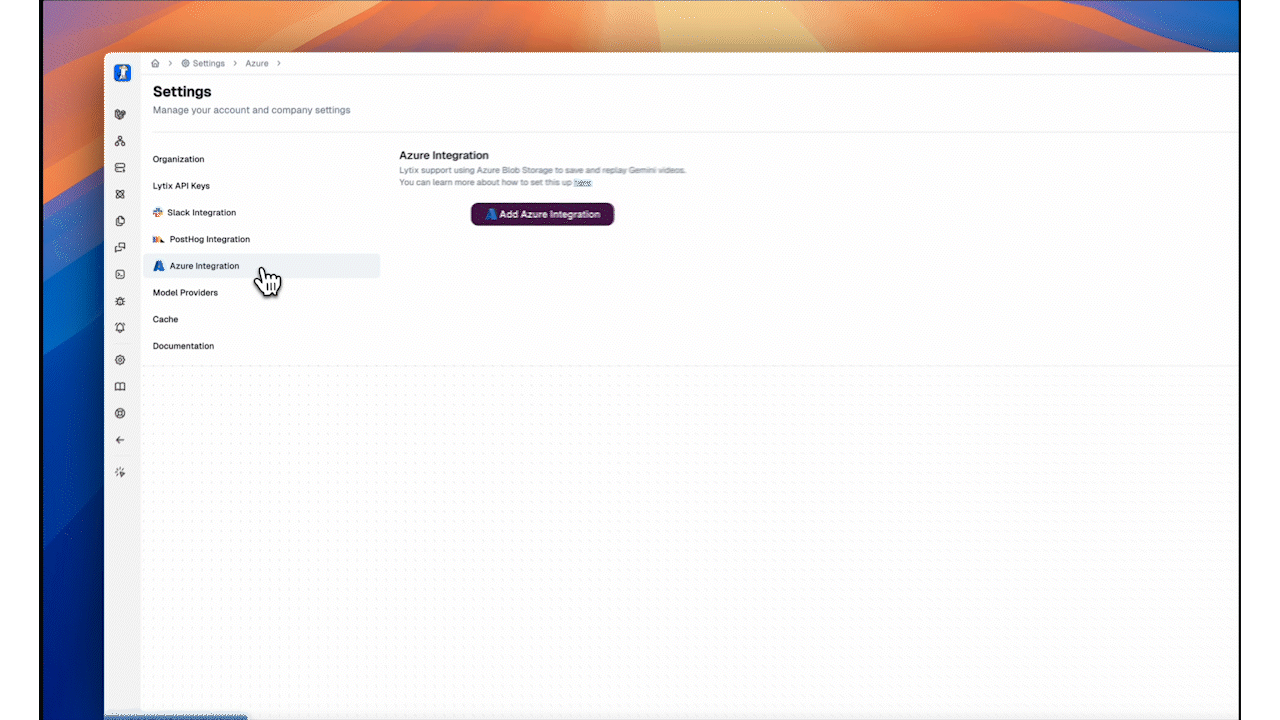

Head over to the Azure Integration Page and click “Add Azure Integration”.
The values needed are:
tenantId
: Thetenant
from step 2clientId
: TheappId
from step 2clientSecret
: Thepassword
from step 2storageAccountName
: The storage account name (e.g.lytixvideos
) from step 1storageAccountContainer
: The storage account container (e.g.lytix-videos-gemini
) from step 1
4. Attach Blob To Service Principal
Head over to the newly created storage account in the Azure Portal by going to the Storage Accounts resource. And click “Add Role Assignment”
We’ll need to add both the Storage Blob Data Contributor
, Storage Account Contributor
and the Storage Blob Data Reader
since lytix will create short lived URLs to view the videos.
The service principle will not show up until you search for it. If you have been following guide directly, the name of the service principle will be lytix-service-principle
.
Note It does not seem like you can select multiple roles at once, so you’ll need to add each one individually :/
5. Repeat For All Users / Service Principals
Repeat step 4 for all users / service principals that will be uploading videos. For example, if you have a user / service principle for your backend task that uploads videos, you’ll need to add them here.
Sending Video To Lytix
After you’ve setup the Azure Integration and have your credentials ready, you can start sending video to Lytix.
We’ve created a simple wrapper script to make sending video to Lytix easy.
Download the lytix client
npm install @lytix/client
Uploading Video
Prerequisites
Setup your lytix credentials in your environment variables. See here to get your API keys, and here on how to set your environment variables.
Now right before you make your Gemini query, you can upload the video to your storage account and get a lytix video id.
import {
UploadFileToAzureAndLytix,
} from "@lytix/client";
const filePath = "/some/path/niceAnimation.mov";
const lytixVideoId = await UploadFileToAzureAndLytix({
filePath: filePath,
storageAccountName: "lytixvideos",
containerName: "lytix-videos-gemini",
mimeType: "video/quicktime",
});
Note Make sure the credentials you are using have the necessary permissions to upload to the storage account.
Then upload your file to Gemini as you normally would.
import { GoogleAIFileManager } from "@google/generative-ai/server";
const fileManager = new GoogleAIFileManager(
"$GEMINI_API_KEY"
);
let uploadResult = await fileManager.uploadFile(filePath, {
mimeType: "video/quicktime",
});
/**
* Await until the file is uploaded
*/
while (uploadResult.state !== "ACTIVE") {
/**
* Delay + requery
*/
await new Promise((resolve) => setTimeout(resolve, 1000));
uploadResult = await fileManager.getFile(uploadResult.file.name);
}
Finally, pass the lytixVideoId
when making your Gemini query.
import { LytixCreds } from "@lytix/client";
import { GoogleGenerativeAI } from "@google/generative-ai";
const genAI = new GoogleGenerativeAI(
"$GEMINI_API_KEY"
);
const customHeaders = new Headers({
"lx-api-key": LytixCreds.LX_API_KEY,
// Just pass the lytix video id here
"lytix-video-id": lytixVideoId,
});
const requestOptions = {
customHeaders: customHeaders,
baseUrl: "https://api.lytix.co/proxy/v1/gemini",
};
const model = genAI.getGenerativeModel(
{
model: "gemini-1.5-flash-latest",
},
requestOptions
);
const result = await model.generateContent([
"Tell me about this video.",
{
fileData: {
fileUri: uploadResult.uri,
mimeType: uploadResult.mimeType,
},
},
]);
And you’re all set! You’ll see the video in the Lytix platform.
Video Coming Soon ⚡
